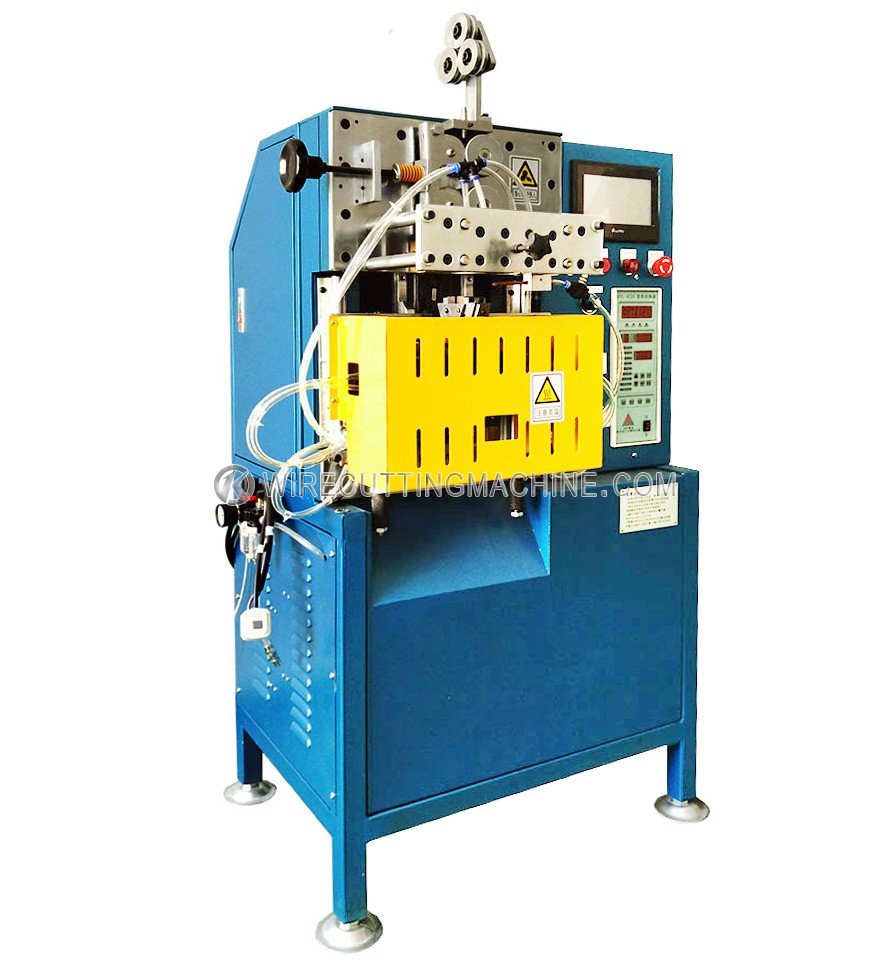

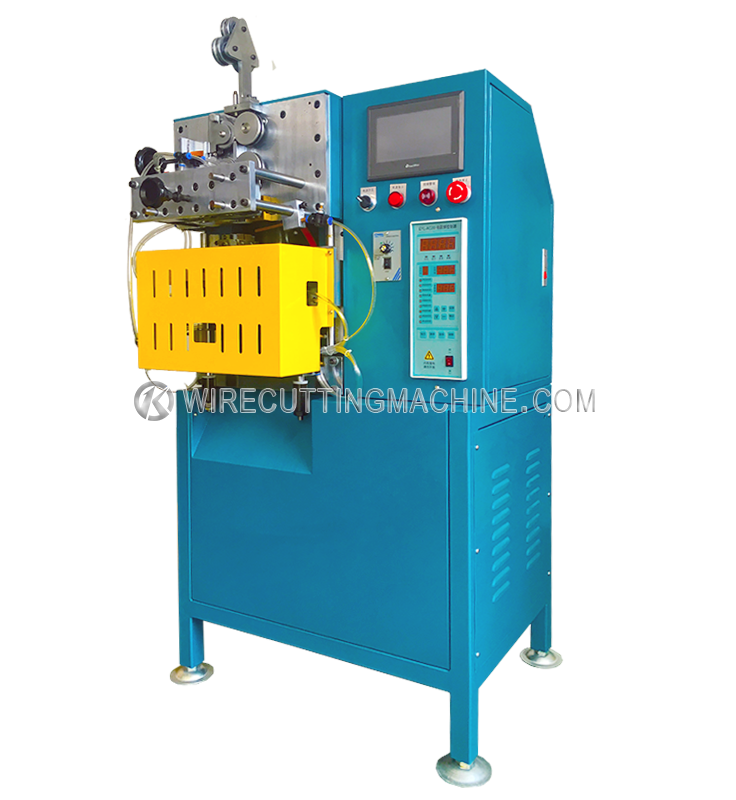

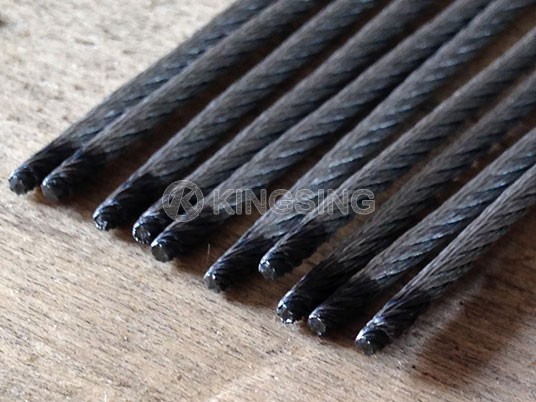

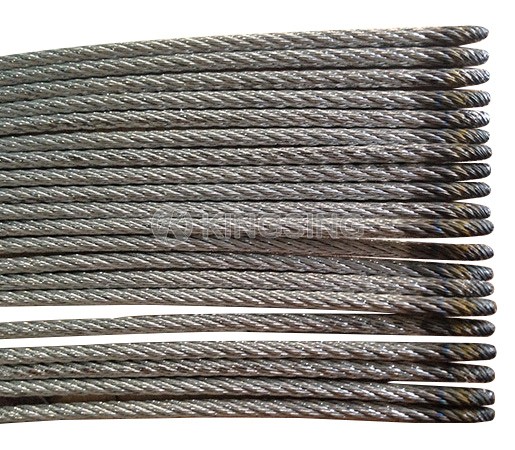

This is a fully automatic wire rope hot melt cutting machine which is suitable for cutting wire ropes with OD 1-5mm. The cutting edge is fused into a cone shape, so the steel wire will not spread out, and the maximum diameter of the cone is smaller than the outer diameter of the wire rope.
Color touch screen operation interface, the length of the cone head and the cutting length of the pointed head can be adjusted simply. One person can handle serval machines at the same time.
The wire rope hot melt cutting machine is mainly used to process various lead-sealed wire ropes, lock wire ropes, and sealing strip wire ropes. It can automatically cut to length and fuse both ends into a cone shape, which can save multiple processes, reduce production costs and increase production capacity. It is widely used in medical equipment, auto parts, construction safety, office furniture, bicycles, sports equipment and other industries.
| Model | KS-R15H-1 | KS-R15H-2 |
| Availabel Wire Size | Φ1~3mm | Φ2~5mm |
| Min. Cutting Length | 150mm | |
| Max. Cutting Length | 30 meters | |
| Cut Speed | 100pcs/hour (Length=300mm, OD=2mm) | |
| Length Tolerance | ±(0.2+L×2‰) L=Cutting Length | |
| Air Source | 0.4~0.6MPa | |
| Power Supply | 380V 50/60Hz | |
| Net. Weight | 300Kg | |
| Dimension | 800×700×1500mm | |
 | ||
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
