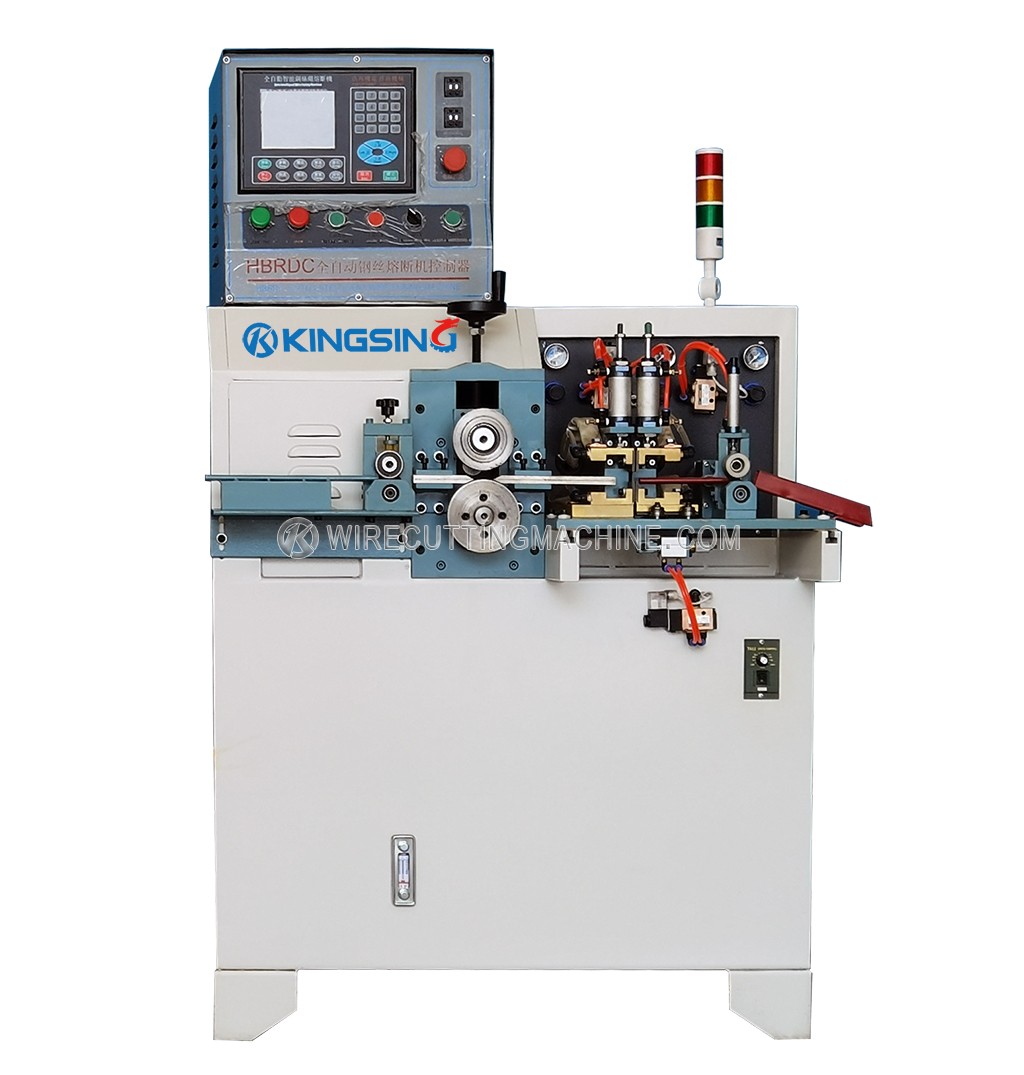

This is a general-purpose wire rope hot melt cutting machine, which is widely used in elevators, automobiles, furniture, medical and other industries. It adopts hydraulic motor feeding, the cutting length can be freely set in the program.

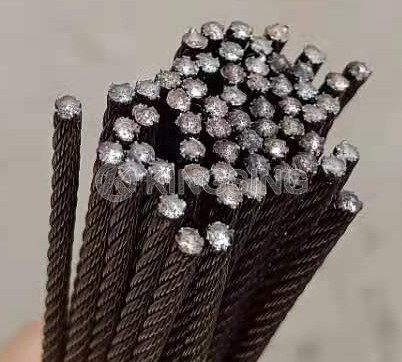

The cut-off position is rapidly melted at high temperature under the action of the copper electrode, the cutting edge is neat and smooth, and the incision is melted together which can prevent the wire from spreading after cutting.
Optional safety cover can be selected, when the safety door is opened, it can automatically alarm and stop.
Scope of application: can melt 8-10mm galvanized steel wire rope
Motor power: 2.2KW
Melting power: 40KW
Melting efficiency: once every 2 seconds
Weight: 400KG
Dimensions: 1300*800*1800mm
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
